Saddlebag "Frisco" 36 litres with bracket suitable for HD Dyna - left

€431.00*

Prices incl. VAT plus shipping costs

Available, delivery time: 2 - 3 days » Different abroad

Set
Product number: 20176
Product weight: 7.5 kg
Item shipping: Standard shipping
  • Saddlebag "Frisco" - Made of 3 mm thick, elaborately impregnated buffalo leather
  • Volume: 36 litres
  • Mounting side: left
  • Load weight: max. 10 kg
  • Colour: black
  • Dimensions (WxHxD): approx. 42 x 44 x 25 cm
  • Incl. "Easy-Fit" bracket, removable, mounting on existing attachment points
  • We also recommend mounting a distance roll (not included in the scope of supply!)
    For 19 mm or 25 mm axle diameter
  • A turn signal relocation kit (except for Wide Glide up to 2008) is also required (not included in the scope of supply!)
Assembly Instructions Safety data sheet

Saddlebag "Frisco" 36 litres with bracket suitable for HD Dyna - left

Saddlebag "Frisco" 36 litres with removable "Easy-Fit" bracket suitable for Harley-Davidson Dyna models (1991-2017). Not suitable for the Fat Bob (2008-2017).

Info:

  • Can be mounted in combination with HD sissybar bracket or removable sissybar
  • No drilling necessary
  • With retaining pins (bungee nuts), which are screwed to the fender struts
  • Can be attached and removed in seconds

Saddlebag:

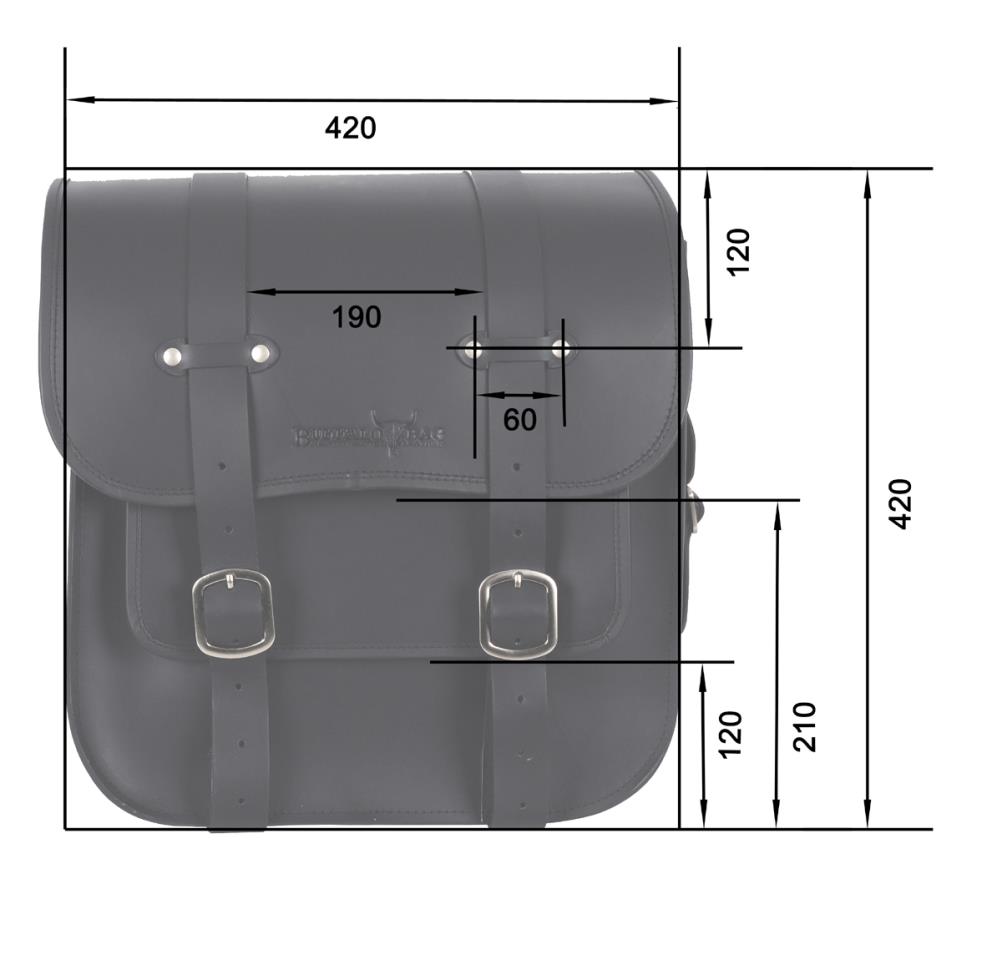

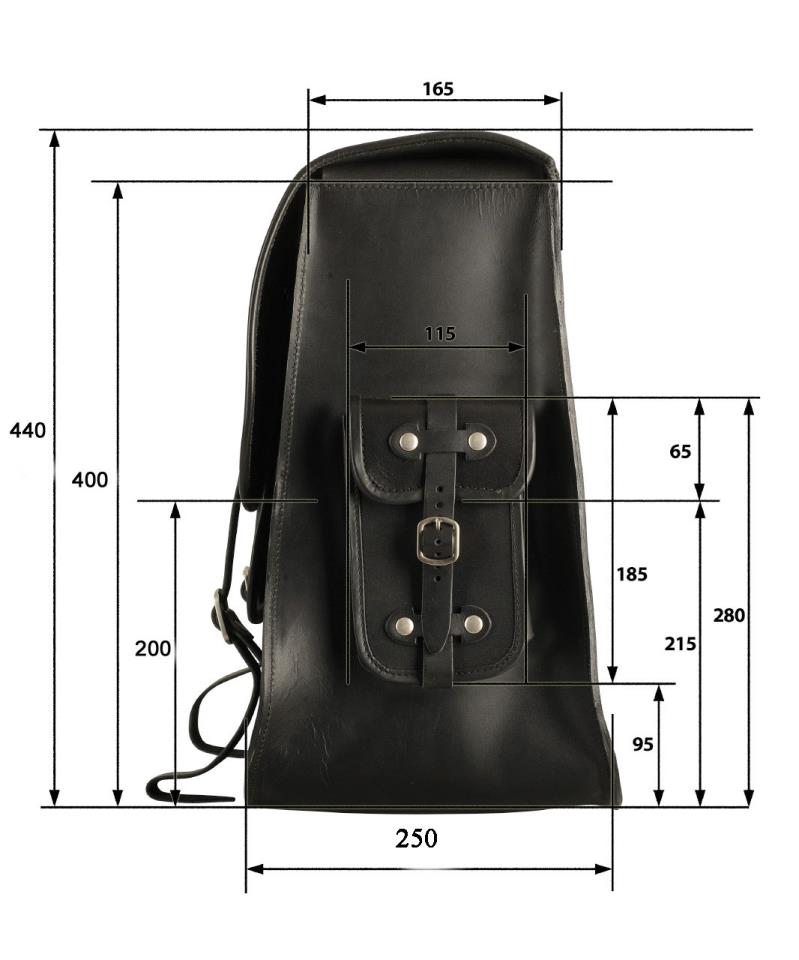

  • Approx. dimensions (WxHxD): 42 x 44 x 25 cm
  • Genuine, silky matt 3 mm strong buffalo leather (no cheap or split leather)
  • 2x internal, overlapping flaps with press studs (protection against dirt and moisture)
  • Elaborately water-repellent impregnated, with additionally glued seams
  • Sewn-in 3 mm strong aluminium plate on the back of the bag ensures greater stability and variable attachment
  • Concealed, large additional outer pocket
  • With additional, small side pocket

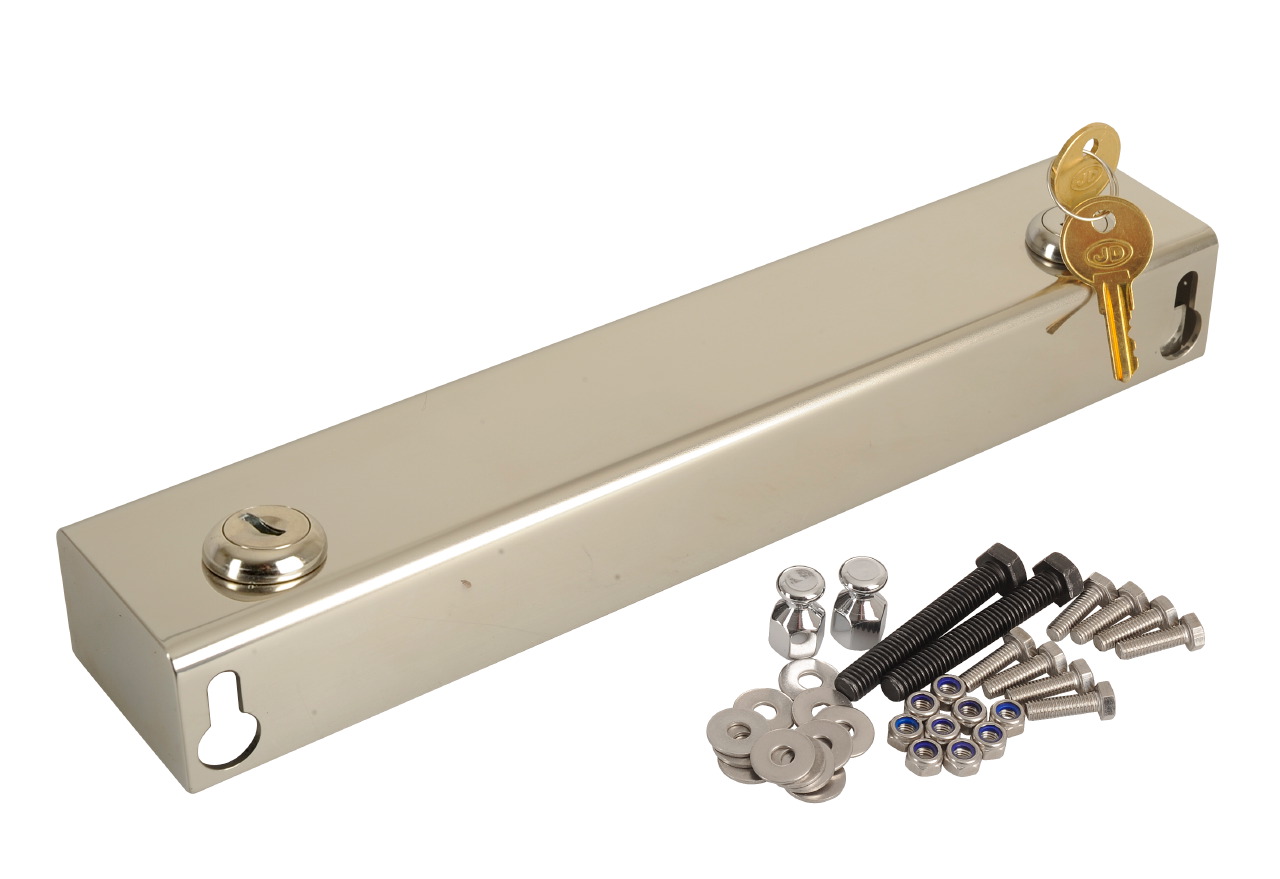

"Easy-Fit" bracket:

  • Detachable
  • Lockable
  • Material: Stainless steel
  • Bracket length: 285 mm
  • Hole spacing: 263 mm

Scope of supply:

  • 1x Saddlebag "Frisco" 36 L black
  • 1x "Easy-Fit" saddlebag bracket
  • 2x Bungee Nuts
  • 1x Mounting material
  • 1x Bottle of leather care oil (to best protect the saddlebag from environmental influences, we recommend thoroughly impregnating it with leather care oil before first use)

We also recommend mounting a distance roll (not included in the scope of supply!)
You also need an additional turn signal relocation kit (not included)!

Note:
The axle diameter was changed from 19mm to 25mm from 2005-2007, but this cannot be clearly defined. Therefore, please check the axle diameter on your bike!



•  Load weight: max. 10 kg
•  Do not load the saddlebag with tools or sharp-edged objects
