Saddlebag bracket "Easy-Fit" 235 mm suitable for HD Softail+Cruiser - left or right
- Saddlebag bracket "Easy-Fit"
- Material: stainless steel
- System: removable
- Mounting side: left or right
- Load weight: max. 10 kg
- Security: lockable
- Measurements: Length: 255 mm / Depth: 35 mm / Hole spacing: 235 mm
- Incl. mounting material
- Suitable for Softail (2018-2021) models: Please check the hole spacing before placing an order!
- Suitable for Cruiser (2022-) models: Please check the hole spacing before placing an order!
- Not suitable for the right side for the Cruiser (2022-) Fat Bob!

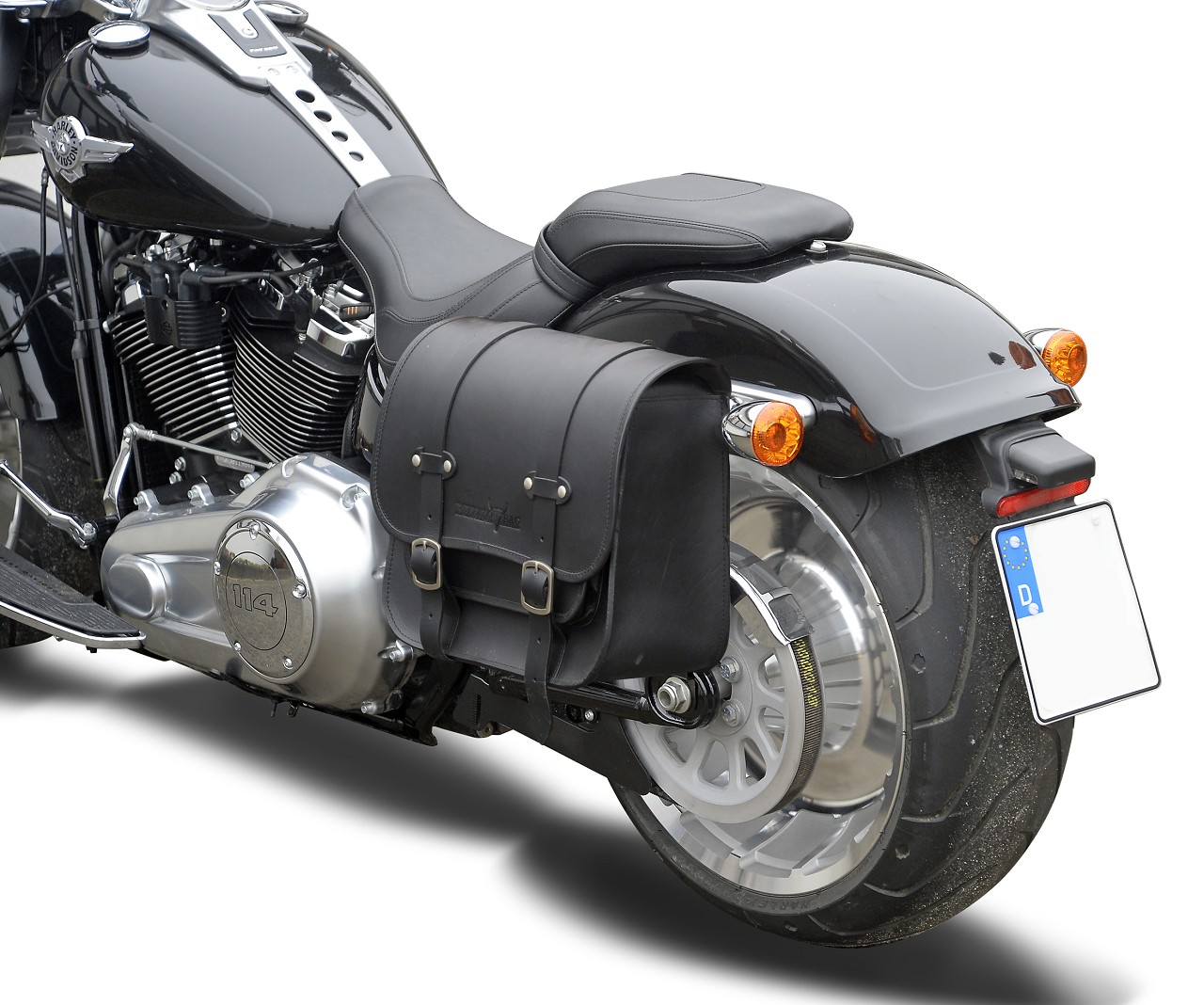

- Suitable saddlebag (not included):
"Vegas" 17 L - left or right
"Boston" 20 L - left
"Boston" 20 L - right
"Boston" 28 L - left
"Frisco" 36 L - left
Saddlebag bracket "Easy-Fit" 235 mm suitable for HD Softail+Cruiser - left or right
"Easy-Fit" saddlebag bracket suitable for Harley-Davidson Softail (2018-2021): Please check the hole spacing before placing an order!
Suitable for Harley-Davidson Cruiser (2022-): Please check the hole spacing before placing an order!
Not suitable for the right side for the Cruiser (2022-) Fat Bob!

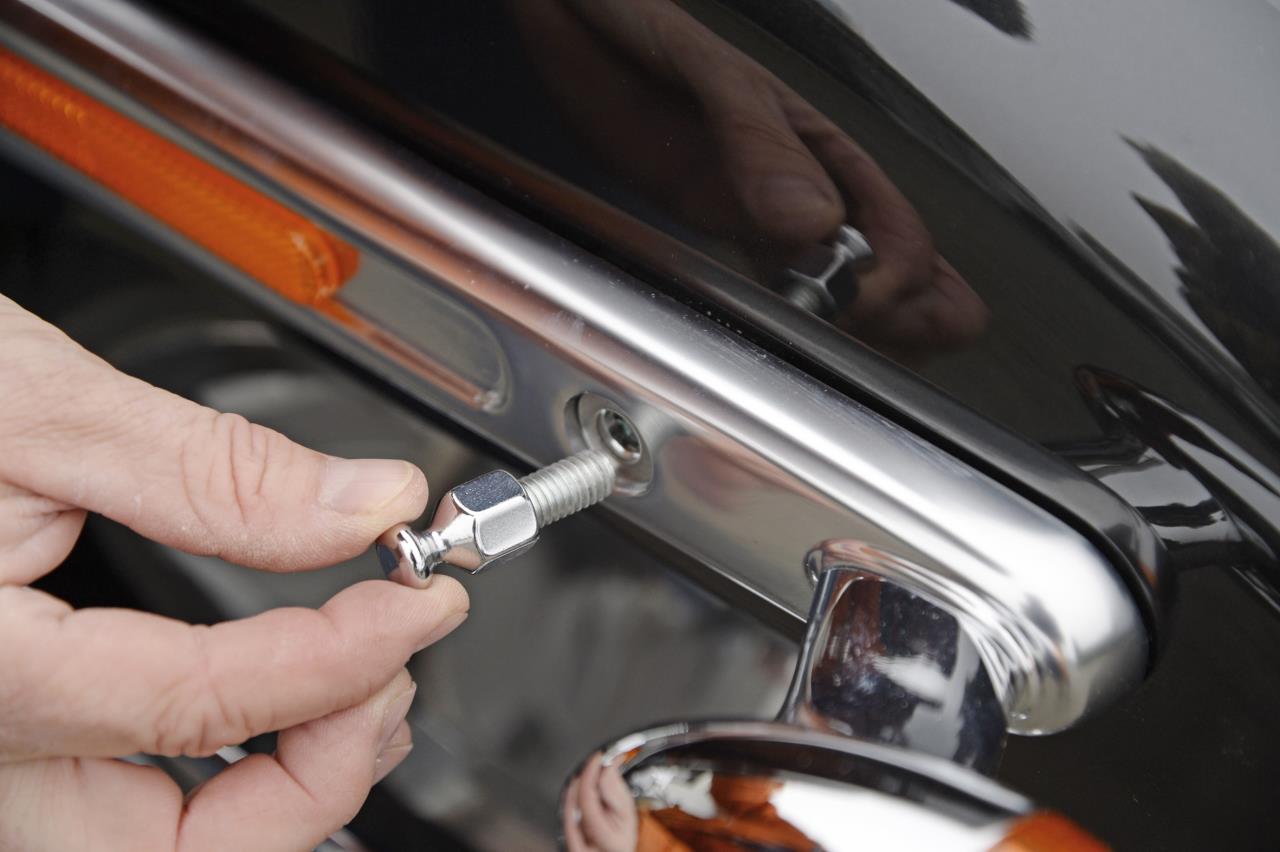

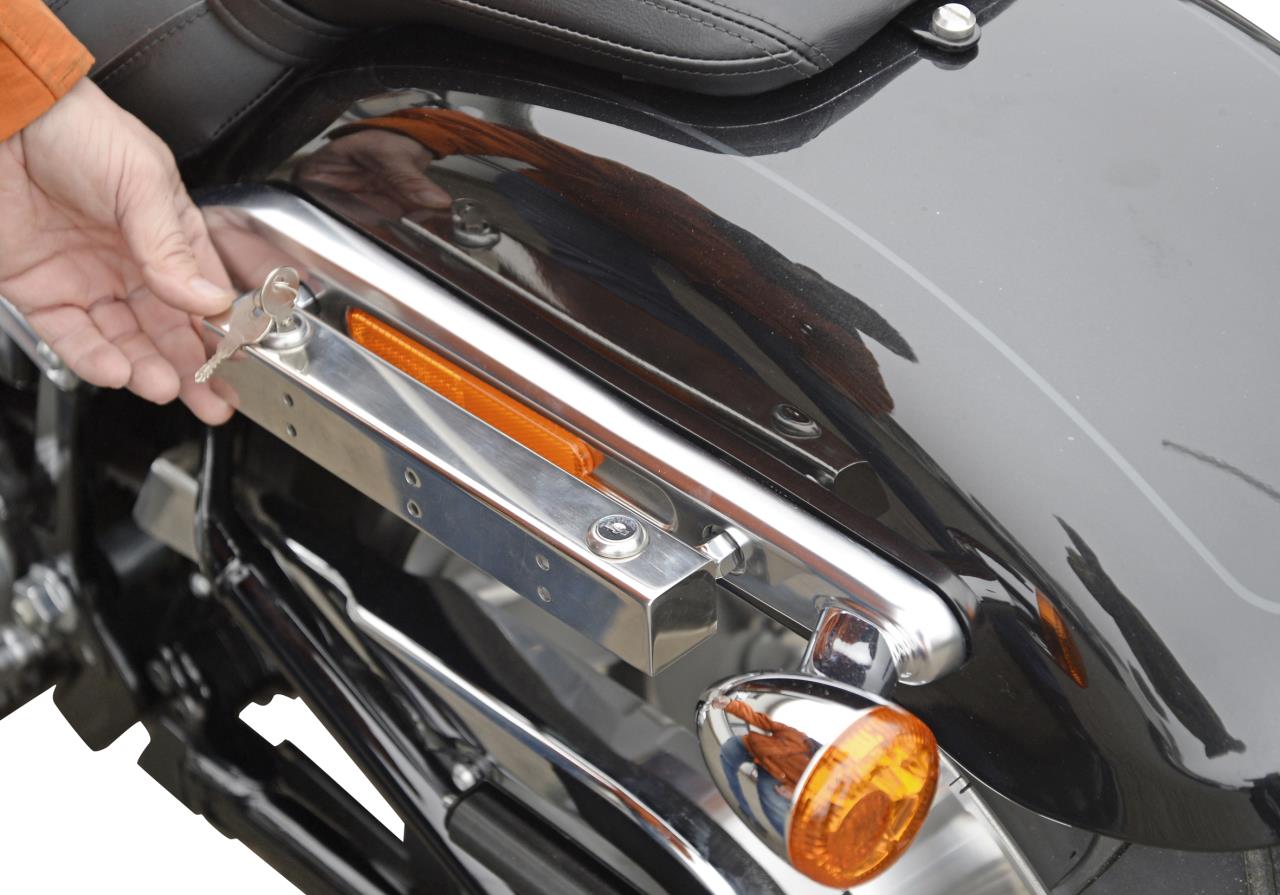

The delivery includes mounting pins (" Bungee Nuts") which are mounted to the original fender struts. The Bungee Nuts are screwed to the original mounting points without drilling. The saddlebag bracket is bolted to the saddlebag, simply hooked into the Bungee Nuts and secured with two locks.
Info:
- Can be mounted in combination with HD sissybar mount, removable sissybar or luggage rack
- No drilling necessary
- With retaining pins ( Bungee Nuts), which are screwed to the fender struts
- Can be attached and removed in seconds
- For models with original fender struts, it must be measured whether the hole spacing of the bracket is suitable for the model. The distance is measured from centre hole to centre hole.
We are offering three different fixed and removable brackets with different hole spacings. For models with a distance of 180 mm, 183 mm and 235 mm. Please be sure to measure the hole spacing on the bike before placing your order!
Scope of supply:
- 1x "Easy-Fit" saddlebag bracket - 235 mm hole spacing
- 2x Bungee Nuts
- 1x Mounting material
• Load weight: max. 10 kg
• No drilling is necessary for assembly
